Why the Shield, Shield Plus, Shield EZ and Shield X Need Different Holsters

Smith & Wesson has used the Shield name on several pistols that are not the same firearm and should not automatically be treated as holster-compatible.

The original M&P Shield, Shield M2.0, Shield .45, Shield Plus, Shield EZ and Shield X are all part of the larger Smith & Wesson concealed-carry family, but the name "Shield" does not mean they share the same frame, trigger guard, slide, rail, barrel configuration or external dimensions.

From a holster manufacturer's perspective, those differences matter.

A firearm does not need to look dramatically different for a holster fit to change. Differences around the trigger guard, dust cover, accessory rail, slide, controls, muzzle and other contact points can determine whether the firearm seats correctly and whether the intended retention surfaces actually engage.

At Dara Holsters, we determine compatibility using the actual firearm configuration rather than assuming that every pistol carrying the Shield name will fit the same holster.

This guide explains the history of the Smith & Wesson Shield family, why Smith & Wesson developed each version, how the firearms differ, and what those differences mean when selecting a Dara holster.

Firearm and Dara holster support information last reviewed: September 2026.

Quick Answer: Do All Smith & Wesson Shield Pistols Fit the Same Holster?

No.

The following pistols should not be treated as one universal holster fit simply because they use the Shield name:

• M&P Shield / original Shield
• M&P Shield M2.0
• M&P Shield .45
• M&P Shield Plus
• M&P Shield EZ
• Shield X

Some closely related Shield models can share certain Dara holster geometry where we have physically established compatibility. Others require their own dedicated firearm selection, and some are not currently supported at all.

M&P Shield M2.0 9mm vs Shield Plus 9mm

The model name printed on the slide is not enough to determine holster compatibility.

Smith & Wesson Shield Family Timeline

Model	Introduction	Caliber	Primary Purpose
Original M&P Shield	2012	9mm, .40 S&W	Slim concealed-carry pistol for professional and consumer users
M&P Shield .45	2016	.45 Auto	Expanded the Shield concealed-carry platform into .45 Auto
M&P Shield M2.0	2017	9mm, .40 S&W	Updated Shield using M2.0 grip and trigger improvements
M&P45 Shield M2.0	2018	.45 Auto	M2.0 updates applied to the .45-caliber Shield
M&P380 Shield EZ	2018	.380 Auto	Easy-to-operate personal-protection pistol
M&P9 Shield EZ	Fiscal 2020	9mm	Expanded the easy-to-operate EZ platform into 9mm
M&P Shield Plus	2021	9mm	Higher-capacity micro-compact concealed-carry pistol
Shield Plus / Shield EZ .30 Super Carry	Fiscal 2022	.30 Super Carry	Expanded both platforms into Federal's new .30 Super Carry cartridge
Shield X	2025	9mm	Newer concealed-carry design combining Shield-family capacity with substantially revised ergonomics and frame features

The Original M&P Shield: Where the Family Started

Smith & Wesson introduced the original M&P Shield on April 12, 2012.

It launched in 9mm and .40 S&W with a 3.1-inch barrel, 6.1-inch overall length and a stated unloaded weight of approximately 19 ounces.

Smith & Wesson described the Shield as bringing features of the larger M&P pistol family into a thin, lightweight concealed-carry package.

The company specifically positioned it for both professional and consumer users looking for a slim personal-protection pistol.

Original Shield Features

The original 2012 Shield included:

• Polymer frame
• 3.1-inch barrel
• Striker-fired operating system
• Single-stack magazine design
• Fixed textured backstrap
• Low-bore-axis design
• Passive trigger safety
• Stainless internal chassis
• Compact controls

The original 9mm version was offered with 7+1 and 8+1 magazine configurations. The .40 S&W version used 6+1 and 7+1 configurations.

Was the Original Shield Optics Ready?

The standard original Shield was not introduced as an optics-ready pistol.

The Shield family was created before factory optics cuts became commonplace on concealed-carry pistols. Smith & Wesson later introduced Performance Center and optics-equipped versions of Shield-family pistols.

This is an important distinction between the firearm itself and the holster:

All current Dara holsters are optics ready. A firearm does not have to have been originally sold as optics ready for the corresponding Dara holster body to provide optic clearance.

Did the Original Shield Have a Thumb Safety?

Smith & Wesson originally offered the Shield with a manual thumb safety and later expanded the line to include models without the manual safety.

Dara Fitment Note: Dara's Shield 9mm/.40 Gen 1 holster fitment does not accommodate the thumb-safety configuration.

The Shield .45 Is Not Just a .45-Caliber Version of the 9mm Shield

Smith & Wesson expanded the Shield family into .45 Auto in 2016.

The .45-caliber firearm should not be treated as interchangeable with the 9mm/.40 Shield simply because all three pistols carry the Shield name.

The Shield .45 has dimensions and geometry specific to the larger cartridge and firearm configuration.

Dara therefore treats the Shield .45 as its own firearm fitment.

Dara Shield .45 Compatibility

If you own a Smith & Wesson Shield .45, select the Shield .45 firearm option when ordering a Dara holster.

Do not select:

• Shield 9mm
• Shield .40
• Shield M2.0 9mm/.40
• Shield Plus
• Shield EZ

Dara can accommodate the thumb-safety configuration on the Shield .45.

The Shield M2.0: An Updated Shield, Not Simply a New Name

Smith & Wesson announced the M&P Shield M2.0 series in October 2017 after introducing the broader M&P M2.0 pistol platform earlier that year.

The initial Shield M2.0 was offered in 9mm and .40 S&W.

Smith & Wesson described two of the major improvements over the earlier Shield as:

• More aggressive grip texture for increased control
• A lighter, crisper trigger

The M2.0 designation was part of Smith & Wesson's broader effort to update the M&P platform using more than a decade of product experience, customer feedback and performance data.

Why Did Smith & Wesson Make the Shield M2.0?

The original Shield had already become an extremely successful concealed-carry pistol. Rather than replacing the concept, Smith & Wesson applied features associated with its next-generation M&P M2.0 family to the Shield.

The result was still intended primarily as a slim concealed-carry and personal-protection pistol, but with updated ergonomics and trigger characteristics.

Original Shield vs. Shield M2.0 Holster Fit

Dara Fitment Finding: The original Shield and Shield M2.0 are extremely similar firearms, but there are slight differences in their frame dimensions.

The trigger-guard geometry is very similar, which is one reason customers may find that one pistol can physically enter a holster intended for the other.

However, Dara does not determine compatibility solely by asking whether a firearm can physically be inserted into a holster.

We evaluate the complete fit, including:

• Seating depth
• Trigger-guard relationship
• Retention
• Frame contact
• Slide clearance
• Control clearance
• Draw characteristics

Dara offers model-specific Shield fitments so customers should select the exact firearm model listed in the ordering menu rather than assuming that the M1 and M2.0 are universally interchangeable.

Did Shield M2.0 Models Have Integrated Lasers?

Yes. Smith & Wesson sold certain Shield M2.0 configurations with factory-integrated Crimson Trace red or green lasers.

Integrated-laser configurations are extremely important from a holster-fit perspective because the laser housing changes the external dimensions of the firearm.

Dara Holsters do not support Lasergrips or any firearm with an integrated laser.

This includes:

• Crimson Trace-style Lasergrips
• Integrated frame-mounted lasers
• Trigger-guard-mounted integrated lasers
• Other laser systems that alter the external profile of the firearm

If your Shield was sold with an integrated laser, do not select the standard Shield firearm option and assume that it will fit.

Shield M2.0 and Optics

The standard Shield M2.0 was not originally introduced as a universally optics-ready platform.

Smith & Wesson later offered Performance Center and factory optics-equipped Shield M2.0 configurations.

Dara holsters are optics ready for supported firearm configurations.

Shield M2.0 Thumb Safety Compatibility

Some Smith & Wesson Shield M2.0 firearms were sold with manual thumb safeties.

Dara's Shield 9mm/.40 Gen 1 and Shield M2.0 holster fitments do not accommodate the thumb-safety configuration.

M&P380 Shield EZ: A Completely Different Type of Shield

The M&P380 Shield EZ was introduced in February 2018.

This is where the Shield naming system becomes especially confusing for holster buyers.

The Shield EZ is not simply an original Shield chambered in .380.

It is a substantially different firearm platform.

Why Did Smith & Wesson Create the Shield EZ?

Smith & Wesson later explained that it had identified a significant group of firearm owners who had difficulty operating traditional semiautomatic pistols.

The company's engineers developed the EZ platform specifically around easier operation.

Smith & Wesson has described the Shield EZ concept as:

• Easy to rack
• Easy to load
• Easy to operate
• Easy to maintain

The platform was designed so people with different levels of hand strength and firearm experience could more comfortably operate, practice with and carry a semiautomatic pistol for personal protection.

Who Is the Shield EZ Intended For?

The Shield EZ is aimed at concealed-carry and personal-protection users who want easier slide manipulation and magazine loading than many conventional compact semiautomatic pistols provide.

That can include:

• Newer firearm owners
• Shooters with reduced hand strength
• People who find conventional recoil springs difficult to manipulate
• People who prefer easier magazine loading
• Anyone who simply prefers the EZ operating system

The point is not that the EZ is only for one demographic. Smith & Wesson developed it around an operating problem that can affect firearm owners of many ages, sizes and experience levels.

The M&P9 Shield EZ

After the success of the .380 version, Smith & Wesson expanded the EZ platform into 9mm during fiscal 2020.

The 9mm version retained the core concept that made the EZ platform successful while giving customers a 9mm personal-protection option.

The Shield EZ Is Not Holster-Compatible With the Standard Shield

Dara Fitment Finding: A Shield EZ should not be ordered using a standard Shield or Shield M2.0 holster selection.

The EZ has its own firearm geometry and requires its own holster fitment.

Even though the slide says "Shield," customers should think of the EZ as a separate pistol platform when selecting a holster.

Shield EZ Thumb Safety

Shield EZ models have been available in configurations with manual safeties.

Dara can accommodate supported Shield EZ models equipped with the thumb safety.

Shield EZ Integrated Lasers

Smith & Wesson also offered certain EZ configurations with Crimson Trace laser systems.

Dara does not support the integrated-laser version.

A laser housing changes the geometry that must pass through and seat inside the holster.

Shield EZ Optics

The original standard Shield EZ platform was not introduced as a universally optics-ready pistol.

Different factory and Performance Center configurations have existed over the life of the platform, so customers should identify their exact firearm configuration rather than assuming that all EZ models are identical.

All Dara holsters are optics ready.

Shield Plus: Why Smith & Wesson Changed the Shield Again

Smith & Wesson introduced the M&P Shield Plus in March 2021.

This was a major evolution of the Shield concept.

Instead of focusing primarily on changing trigger feel or texture, the Shield Plus addressed one of the biggest changes occurring in the concealed-carry market: demand for greater magazine capacity while maintaining a narrow micro-compact firearm.

Smith & Wesson described the Shield Plus as its most advanced Shield pistol at the time and specifically designed it for concealed carry.

What Changed With the Shield Plus?

Major Shield Plus changes included:

• Increased magazine capacity
• Micro-compact configuration
• Wider magazine architecture than the original single-stack Shield
• Flat-face trigger
• Updated grip/frame geometry
• Factory optics-cut configurations
• Performance Center configurations

The original 9mm Shield Plus offered magazine capacity of up to 13 rounds while maintaining a relatively slim concealed-carry profile.

Who Is the Shield Plus Intended For?

The Shield Plus is primarily intended for concealed-carry users who want the compact dimensions associated with the Shield family but prefer increased ammunition capacity and more modern carry-pistol features.

Shield Plus .30 Super Carry

During fiscal 2022, Smith & Wesson introduced both the Shield Plus and Shield EZ in .30 Super Carry as part of a co-launch with Federal Premium Ammunition.

Caliber alone should never be used to infer Dara holster compatibility.

If ordering for a .30 Super Carry firearm, select the exact firearm and caliber option offered by Dara rather than assuming that every Shield with a similar barrel length uses the same holster.

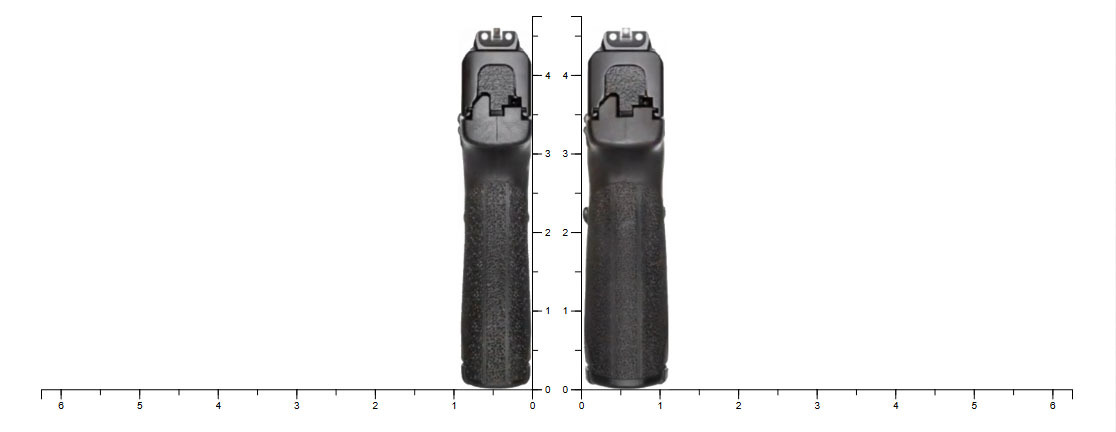

Does the Shield Plus Fit an Original Shield Holster?

Dara treats the Shield Plus as its own supported firearm fitment.

Although the Shield Plus shares clear ancestry with the original Shield, changes to the frame and magazine system mean customers should not use "Shield" as a universal ordering option.

Select Shield Plus when that is the firearm you own.

Shield Plus Thumb Safety

Shield Plus variants have been offered with and without manual thumb safeties.

Dara's Shield Plus holster fitment does not accommodate the thumb-safety configuration.

Is the Shield Plus Optics Ready?

Smith & Wesson has offered Shield Plus models in both traditional and optics-ready configurations, including Performance Center versions with optics cuts.

Dara holsters are optics ready.

Customers should still select the correct firearm model and barrel length when ordering.

Shield X: The Shield Name Does Not Mean Shield Plus Holster Compatibility

Smith & Wesson introduced the Shield X in 2025.

The Shield X is one of the clearest examples of why customers should never determine holster compatibility from the word "Shield" alone.

The Shield X is not simply a Shield Plus with a new slide.

It uses a substantially revised firearm configuration.

What Changed With the Shield X?

The Shield X is chambered in 9mm and uses a 3.6-inch barrel.

Features of the design include:

• Longer 3.6-inch barrel
• Longer overall firearm configuration
• Longer grip frame
• 13-round flush-fit magazine
• 15-round extended magazine
• Accessory rail on the frame
• Undercut trigger guard
• Extended beavertail
• More aggressive slide serrations
• Revised frame ergonomics
• Factory optics-ready slide
• Smith & Wesson ClearSight Cut
• Shield RMSc/K-style optic compatibility

Smith & Wesson incorporated ideas from both the Shield family and the newer Bodyguard 2.0 when developing the Shield X.

Why Did Smith & Wesson Make the Shield X?

The Shield X reflects the continued evolution of the concealed-carry market toward pistols that combine relatively narrow dimensions with:

• Higher capacity
• Better grip ergonomics
• Accessory mounting capability
• Factory optic support
• Improved slide manipulation

It maintains the Shield-family concealed-carry concept but changes enough of the firearm's external geometry that the shared name should not be interpreted as shared holster fit.

Shield X Thumb Safety

Smith & Wesson has offered the Shield X both with and without a manual thumb safety.

Is the Shield X Optics Ready?

Yes. The Shield X was introduced as an optics-ready pistol and uses Smith & Wesson's ClearSight Cut with a micro-optic mounting configuration.

Does Dara Make a Shield X Holster?

No. Dara does not currently manufacture a holster for the Smith & Wesson Shield X.

Do not order a:

• Shield holster
• Shield M2.0 holster
• Shield Plus holster
• Shield EZ holster

for a Shield X.

The Shield X has a different frame configuration, trigger-guard geometry, accessory rail, overall length and other external dimensions that affect holster fit.

Dara has not established Shield X compatibility with our existing Shield-family holsters.

If Shield X support is added in the future, it will be listed as a supported firearm option after Dara has developed and validated the fitment.

Request Dara Holster Support for a Firearm

Shield Family Holster Compatibility at a Glance

Firearm	Dara Holster Fitment	Thumb Safety Accommodation	Integrated Laser	Optic Clearance
Original Shield 9mm/.40	Select appropriate Shield Gen 1 fitment	No	Not supported	Yes, Dara holsters are optics ready
Shield M2.0 9mm/.40	Select appropriate Shield M2.0 fitment	No	Not supported	Yes, Dara holsters are optics ready
Shield .45	Dedicated Shield .45 fitment	Yes	Not supported	Yes, Dara holsters are optics ready
Shield Plus	Dedicated Shield Plus fitment	No	Not supported	Yes, Dara holsters are optics ready
Shield EZ	Dedicated EZ fitment according to supported model	Yes	Not supported	Yes, Dara holsters are optics ready
Shield X	Not currently supported	N/A	N/A	N/A - firearm not currently supported

Lasergrips and Integrated Lasers

Dara Holsters do not support Lasergrips or any firearm with an integrated laser. This includes Crimson Trace-style Lasergrips, frame-integrated lasers, trigger-guard-integrated lasers and other laser systems built into or attached to the firearm itself.

If your Smith & Wesson has an integrated laser, do not select the standard firearm model and assume it will fit. The additional laser housing changes the external dimensions of the firearm and can interfere with holster fit, seating and retention.

This is especially important with the Shield family because Smith & Wesson has sold factory Shield, Shield M2.0 and Shield EZ configurations equipped with integrated Crimson Trace laser systems.

Optics Compatibility

All Dara Holsters are optics ready. Our holsters are designed to accommodate supported pistols equipped with slide-mounted red dot sights and other common handgun optics.

Optic compatibility does not change the need to select the correct firearm model, barrel length, frame configuration and weapon-mounted light.

If your firearm uses an unusually large or non-standard optic setup, contact Dara Holsters before ordering to confirm clearance.

Why Similar Shield Pistols Can Need Different Holsters

A molded holster is built around external firearm geometry rather than a manufacturer's product-family name.

Areas that can affect Shield-family holster compatibility include:

• Trigger-guard width and contour
• Frame width
• Dust-cover geometry
• Accessory rail
• Slide dimensions
• Barrel and muzzle length
• Manual safety controls
• Integrated laser housings
• Optic position
• Other external controls

A pistol physically entering another Shield holster does not automatically establish correct compatibility.

Dara evaluates whether the firearm:

• Reaches its intended seating depth
• Engages the intended retention surfaces
• Has consistent retention
• Has appropriate trigger-guard coverage
• Draws without binding
• Clears external controls
• Correctly interfaces with any active retention components

Physically fitting inside the holster is not the same as being correctly fitted to the holster.

How Dara Determines Smith & Wesson Holster Compatibility

Dara does not determine firearm compatibility from online dimensions alone.

When developing a new firearm fitment, our process can include acquiring the actual firearm, inspecting the configuration, 3D scanning the firearm, creating a digital model, developing production geometry in CAD and machining firearm-specific production molds.

The areas evaluated can include:

• Trigger guard
• Frame
• Dust cover
• Accessory rail
• Slide
• Muzzle
• Controls
• Optic clearance
• Weapon-light position when applicable

When separate firearm geometry requires separate tooling, Dara can create dedicated molds rather than forcing a new firearm into an older fitment.

Conversely, when physical evaluation confirms that two firearms correctly interact with the same holster geometry, Dara can identify those models as compatible.

The goal is not to make every firearm require a different mold. The goal is to establish compatibility from the actual firearm geometry rather than the model name alone.

See How Dara Holsters Are Manufactured

Dara Physically Fit-Tests Holsters Before Shipment

Compatibility does not end with CAD or mold development.

Dara uses the actual firearm model to test-fit completed holsters before shipment.

This allows our production team to physically evaluate fit and retention using the firearm configuration the holster was designed to support.

Our production tooling is also maintained and replaced when necessary. Holster molds are repeatedly exposed to heat, vacuum and production handling. If a mold becomes damaged, chipped or otherwise falls outside our production standards, it is replaced.

Dara also periodically recreates firearm tooling as part of maintaining the fit standards expected from our holsters.

Which Shield Should I Select When Ordering a Dara Holster?

Start with the exact model designation of your firearm.

Do not select a firearm simply because the barrel length or product-family name seems close.

Before ordering, identify:

• Exact Smith & Wesson model
• Generation
• Caliber
• Barrel length
• Thumb-safety configuration
• Whether the firearm has an integrated laser
• Weapon-mounted light, if equipped
• Any other external modification that changes the firearm profile

If your exact firearm is not available in the Dara firearm-selection menu, do not substitute a similar Shield model.

View Dara's Smith & Wesson Holster Compatibility Guide

View Dara's Supported Firearms

Request Support for a Firearm

Shield vs. Shield Plus vs. Shield EZ vs. Shield X: The Bottom Line

"Shield" is a Smith & Wesson product family. It is not a universal holster-fit specification.

The original Shield established the slim concealed-carry platform in 2012.

The Shield M2.0 updated that concept with M2.0-era grip and trigger improvements.

The Shield .45 expanded the family into a larger caliber and requires its own Dara fitment.

The Shield EZ was designed around easier operation and is a fundamentally different firearm from the standard Shield.

The Shield Plus increased capacity and modernized the Shield concept for the micro-compact market.

The Shield X changed the frame, barrel length, accessory rail, trigger-guard geometry, ergonomics and optic system enough that customers should treat it as a separate firearm rather than another Shield Plus configuration.

That is why Dara identifies these firearms separately.

Always select the exact firearm Dara has tested rather than assuming that two pistols with "Shield" on the slide use the same holster.

Smith & Wesson Shield Holster Compatibility FAQs

Will a Shield Plus fit an original Shield holster?

Do not assume that it will. Dara treats the Shield Plus as its own firearm fitment. Select Shield Plus when ordering for a Shield Plus.

Will a Shield M2.0 fit a Shield Gen 1 holster?

The original Shield and Shield M2.0 are closely related and have very similar trigger-guard geometry, but Dara recommends selecting the exact firearm generation offered in the ordering menu. Slight frame differences can affect the finished fit.

Is the Shield EZ the same size as a regular Shield?

No. The Shield EZ is a separate firearm platform designed around easier slide manipulation, loading and operation. It should not be treated as a standard Shield holster fitment.

Does a Shield .45 fit a 9mm Shield holster?

No. Dara treats the Shield .45 as a separate firearm fitment.

Does the Shield X fit a Shield Plus holster?

Dara has not established Shield X compatibility with the Shield Plus holster. The Shield X uses different frame, trigger-guard, accessory-rail and overall firearm geometry. Dara does not currently offer a Shield X holster.

Does Dara make Shield X holsters?

Not currently. If Shield X support is added, the firearm will be listed in Dara's supported-firearm options after fitment development and validation.

Are Dara Shield holsters optics ready?

Yes. All Dara holsters are optics ready for supported firearm configurations.

Can Dara holsters fit a Shield with a Crimson Trace integrated laser?

No. Dara does not support Lasergrips or firearms equipped with integrated lasers. The laser housing changes the external dimensions of the firearm and therefore changes holster fit.

Can Dara accommodate a thumb safety on the Shield?

It depends on the firearm. Dara's Shield 9mm/.40 Gen 1 and M2.0 fitments do not accommodate the thumb safety. Shield Plus thumb-safety configurations are also not accommodated. Dara can accommodate the thumb safety on supported Shield .45 and Shield EZ configurations.

Why can two Shield pistols look similar but need different holsters?

A molded holster interacts with specific areas of the firearm, including the trigger guard, frame, dust cover, slide, muzzle and controls. Small changes in those areas can alter seating, clearance and retention even when the two pistols look very similar.

How does Dara know whether two Shield models share a holster?

Dara evaluates the actual firearm geometry and physically fit-tests supported firearms rather than relying solely on model names or published overall dimensions. When two firearms are verified to share the same holster geometry, Dara can list them accordingly. When their dimensions require different tooling, they are treated as separate fitments.

Manufacturer References

The firearm history and manufacturer feature descriptions in this guide were verified against Smith & Wesson product announcements, company reports and manufacturer materials.

• Smith & Wesson: Original M&P Shield Introduction - April 2012
• Smith & Wesson News Archive: Shield .45, Shield M2.0, Shield EZ and Other Product Introductions
• Smith & Wesson: Explanation of the Market Need Behind the Shield EZ Platform
• Smith & Wesson Annual Report: Shield Plus Introduction and Features
• Smith & Wesson Annual Report: .30 Super Carry Shield Plus and Shield EZ Introduction

Manufacturer specifications and product offerings can change. Dara-specific compatibility statements on this page describe Dara Holsters fitment and should not be interpreted as universal compatibility across holsters made by other manufacturers.
